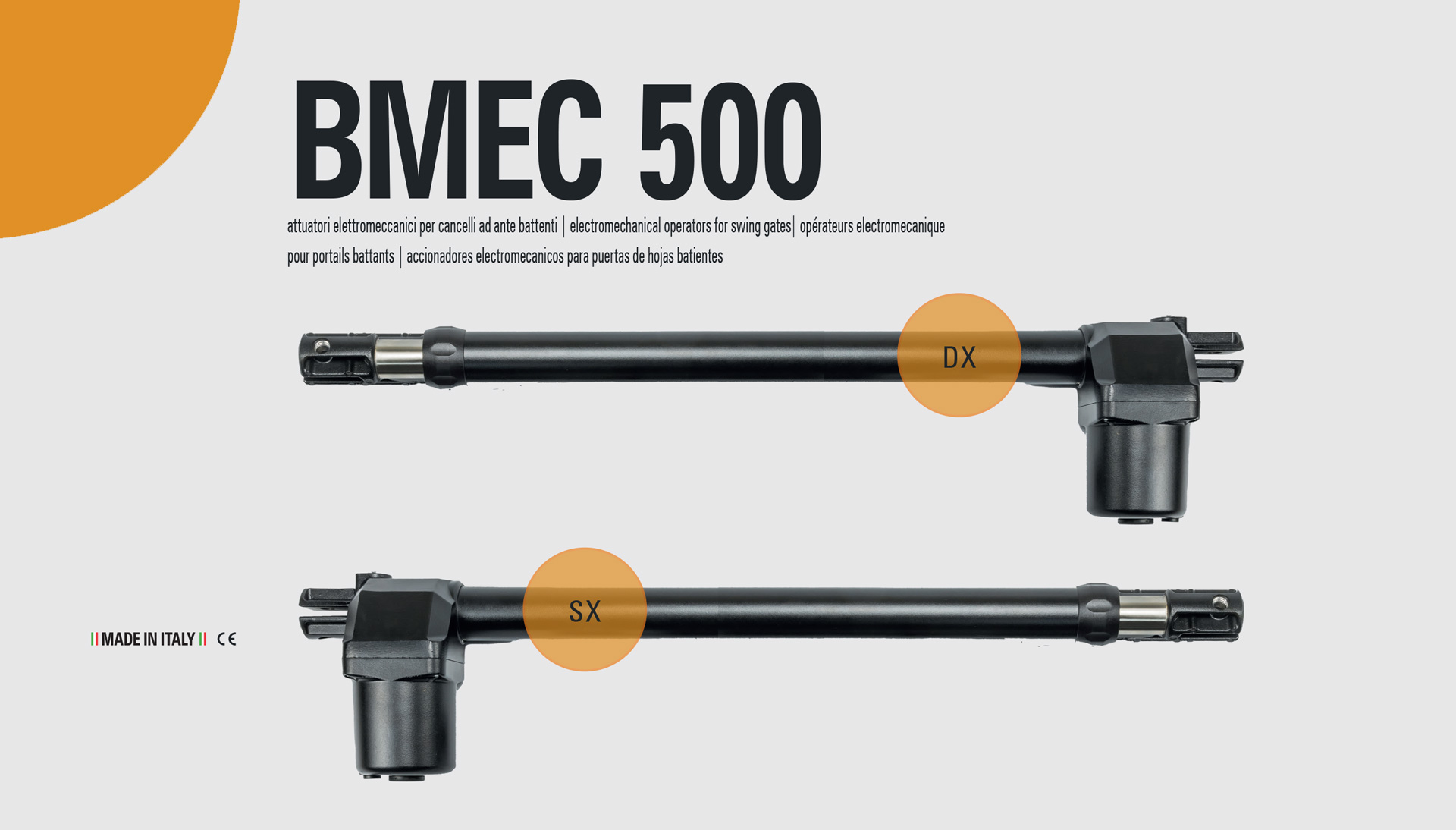

DATI TECNICI | DATA SHEETS | FICHE TECNIQUE | DATOS TECNICOS | BMEC 500 |
---|---|
Tensione alimentazione | Power supply | Tension alimentation | Tensione de alimentaciòn* | 230 Vac 50 Hz |
Motore elettrico | Electric motor | Moteur électrique | Motor electrico (rpm) | 1400 rpm |
Corrente | Current | Courant | Corriente (A) | 1,2-1,7 A |
Potenza motore | Motor power | Puissance moteur | Potencia motore (W) | 280 W |
Termoprotezione | Thermal protection | Protection termique | Protección térmica | 150°C |
Condensatore | Capacitor | Condensateur | Condensador | 8 µ |
Forza di spinta | Thrust forcer | Force de poussé | Fuerza de empuje (max) | 2800 N |
Grado di protezione | Class protection | Classe de protection | Grado de protección | IP 44 |
Tempo apertura | Opening time | Temps d'ouverture | Tiempo apertura (90° | 27 sec. |
Blocco anta | Swing lock | Blocage portail | Bloqueo hoja | apertura chiusura / opening closing / ouverture fermature / abertura cierre |
Peso anta | Leaf weight | Poids du portail | Peso hoja (max) | 250 kg |
Lunghezza anta | Leaf length | Longueur portail | Longitud de la hoja (max) m. | 3,50 m |
Dimensioni | Dimensions | Dimensions moteur | Medidas (L x P x H) mm | 865 x 90 x 178 |
